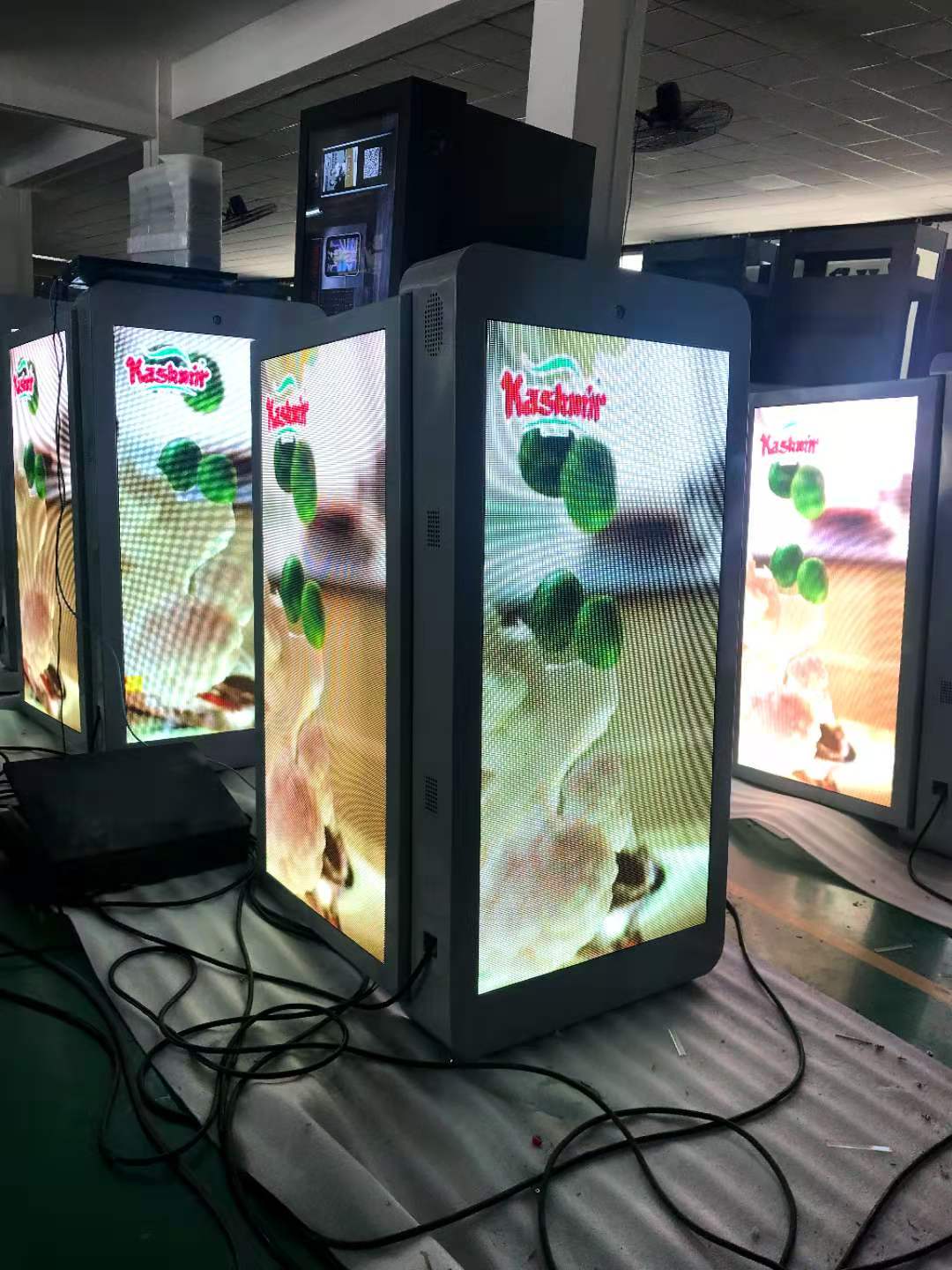

Outdoor LED Sign board Watter proof P2.5 640mm*1280mm Wifi Controller

Make good quality led display we are seriously!

Introduction

WE WILL TAKE CARE OF THE SUCCESS OF YOUR PROJECT.

PRODECT DESIGN -->PROJECT BUDGET-->PROJECT SUPPORT-->SUCCEED

PH4mm LED SMD Outdoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	2.5mm
2	Pixel Configuration	3-in-1, SMD 1415
3	Module Resolution	128dots X 64dots
4	Module Pixles	8192dots
5	Module Size	320mm X 160mm
6	Module power	5V8.5A 42.5W
Cabinet Specification
1	Cabinet Size(WXHXD)	640mmLx1280mmHx135mmD
2	Cabinet Resolution	256*768 pixels
3	Module Quanity	24 pcs
4	Cabinet Pixels	196608 dots
5	Pixel Density	160000 dots/m2
6	Average Power Consumption	400W/cabinet
7	Max. Power Consumption	1200W/cabinet
8	Material	Iron cabinet
9	Cabinet Weight	50KG
10	Protective Grade	IP54
Screen Parameters
1	Whole screen size	640mmx1280mm
2	LED Display piexl	256 * 512
3	Cabinet quantity	1pcs
4	Brightness	≥6000 mcd/㎡
5	Brightness(Max./Min.)	1.2:1
6	Driving Method	1/16 Scan
7	View Angle	Horizontal 140° Vertical 120°
8	Optimal Viewing Distance	5M
9	Brightness Control	Red,Green and Blue 256 Grade/Each
10	Refresh rate	>1920HZ
11	Frame Frequency	60Hz
12	Input Voltage	AC220V/50Hz or AC110V/60Hz
13	Defects Rate	≤0.00001
14	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
15	Screen weight	≤35kg/㎡
16	MTBF	>10,000 hours
17	Life span	≥100,000 hours
18	Module Display Brightness Uniformity	<2%
19	Earth Leakage Current	<3mA
20	Protective Grade	IP65
21	Temperature-operating	﹣25℃～45℃
22	Humidity-operating	10%～95%
23	Controlling system	HD-Player Wifi
24	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.

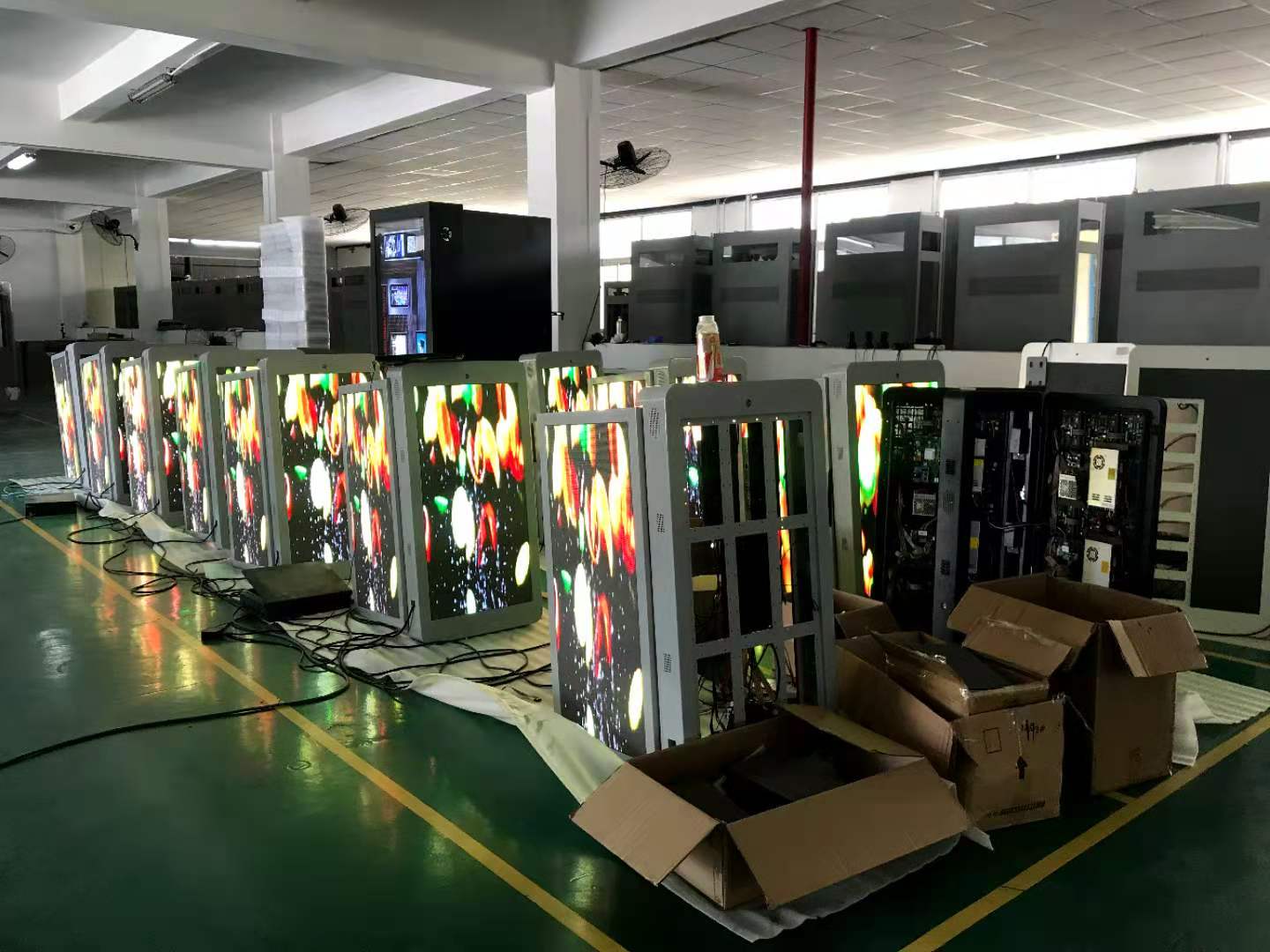

Shenzhen LCS Display Technology Company., Ltd. was established in 2010. It is a LED display manufacturer that integrates design, development, production of patches and assembly. In terms of raw materials, we have established a stable cooperative relationship with supporting suppliers. In terms of convenient production, there are 7 high-speed SMT lines and automatic reflow soldering production lines, which can ensure the delivery of orders. For welding quality, we use solder paste welding quality inspection machine to check the stability of welding before each unit board is put on the aging rack. Our company always insist that integrity is the basis, leading production technology is supported, and professional and dedicated services are keys to cooperate with our customers and achieve a win-win situation.

Application areas: dedicated to intelligent transportation, intelligent security monitoring, radio and television broadcasting, video conferencing, intelligent advertising media, real estate and commercial display, science and education stadiums, cultural performance stage display, smart scene creative display, and other smart terminal smart display engineering applications.

Our company is one of the national high-tech enterprises in 2019,

Our company's products have passed: CE certification, 3C certification, green environmental protection certification, strictly improve the product quality management under the ISO9001: quality certification system, and strictly follow the quality inspection procedures and supply of IQC, IPQC, CFQC, QA in the process Chain management.

Our company's products are independently developed, produced, and sold in more than 10 countries domestic and overseas. From 2017 to 2018, we participated in a total of 17 overseas international exhibitions in 8 countries. we have brand honors, qualification certificates, and 109 patents.
