    Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption Shenzhen Factory

    Ask Lasest Price
    Brand Name : Smart LED
    Model Number : P6
    Certification : CE,ROSH,FCC,EMC
    Payment Terms : T/T
    Supply Ability : no requirement
    Delivery Time : 2-3 Days
    • Product Details
    • Company Profile

    Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption Shenzhen Factory

    P6 192*192mm Outdoor 720PCS SMART DIY LED Module -Easy install Play video 2Years Guarantee


    Applications

    P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m


    Product Features

    * Cabinet Install to the wall,Module magnet service

    * Used LED Processor can open 2 windows on the LED Display.

    * Power supply and Controller service from the front side.


    What we can do

    * Project advise,Make the easy project design,easy for install and service

    * Free on-line support

    * We will send the setting file send with the goods. And also we will keep the Project file.

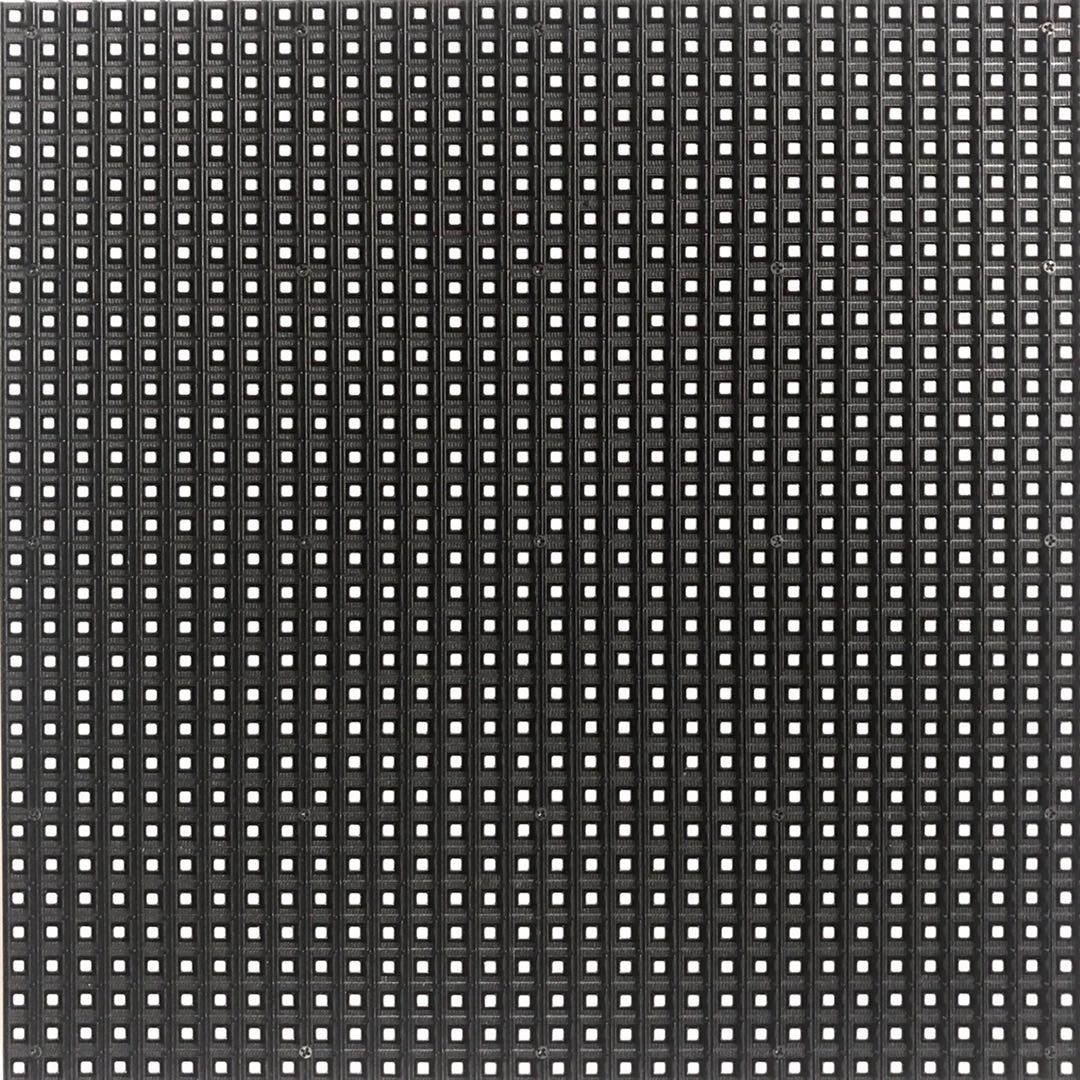

    P6 SMD outdoor

    Description:

    Size:192mm*192mm(7.56”x 7.56”)

    Resolution:32dots*32dots

    Drive IC: MBI5124

    Display Function: Video ,Message

    Working environment: Outdoor

    Parameter:


    Pixel pitch6 mm
    LED Lamp typeSMD 3535
    LED composing1RGB
    Module size192mmx192mm
    Refresh1920Hz
    Pixels Density27778 pixel/㎡
    Module scan1/8 scan
    Brightness6500mcd
    Power input5V
    Input Amp6A
    Operating Temperature-20℃~60℃
    Ave power consumption30W
    Port typeHUB75
    Horizontal View Angel>110degree
    Working Temp-20℃ to +60℃
    N.W.465g
    IP gradeIP65
    Order quanatity720pcs

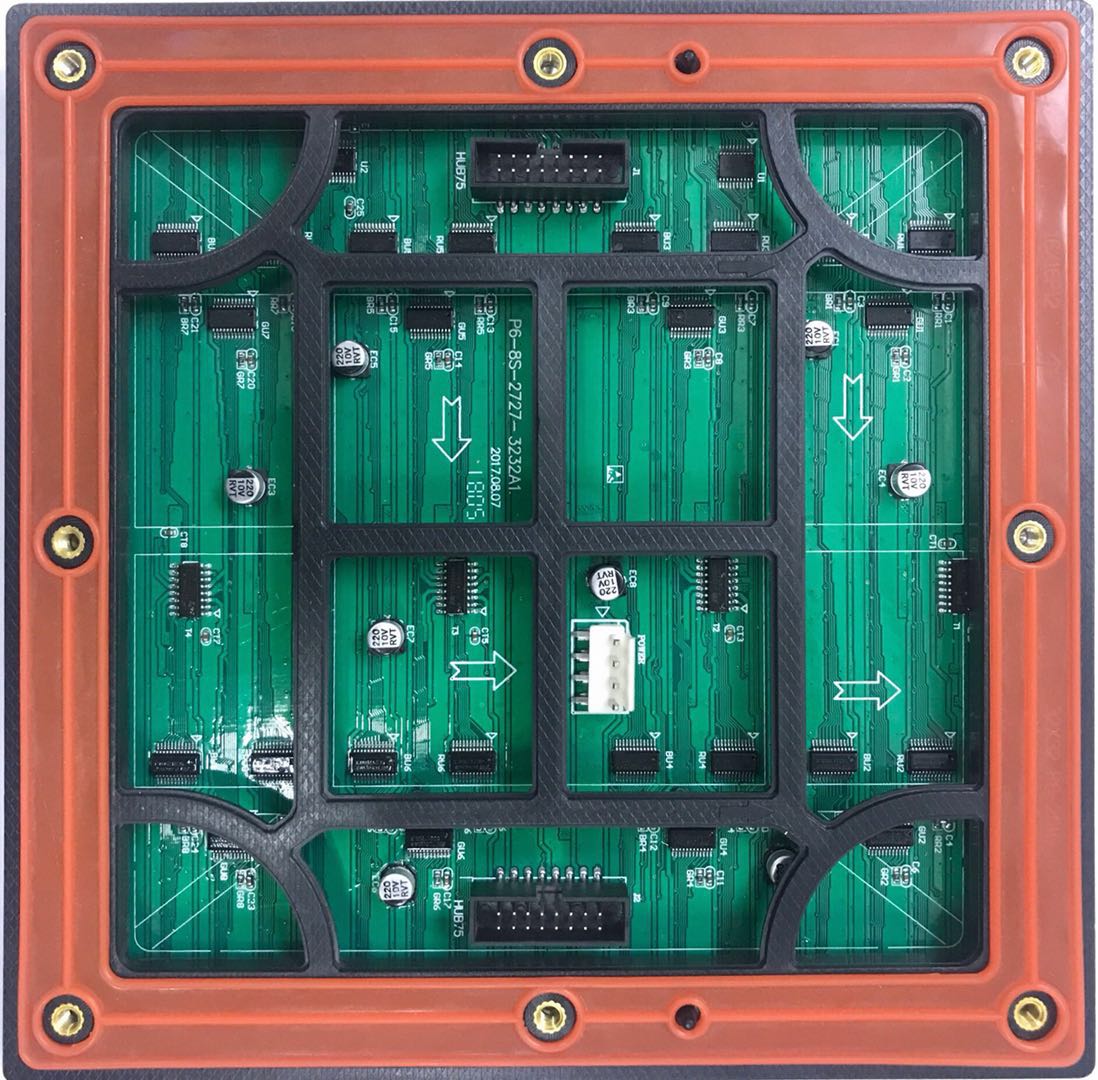

    Structure chart:


    Production line


    Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption Shenzhen Factory


    Certificate



    Packaging and shipping

    Packing:1.Paper box packing and Water proof packing
    Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
