P7.62 Indoor Display HD-LED Video screen Magnet Install Size:5.856m*4.392m

Applications

Product Features

* Cabinet Install to the wall,Module magnet service

* Diagonal seam:1.6mm

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH7.62mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA

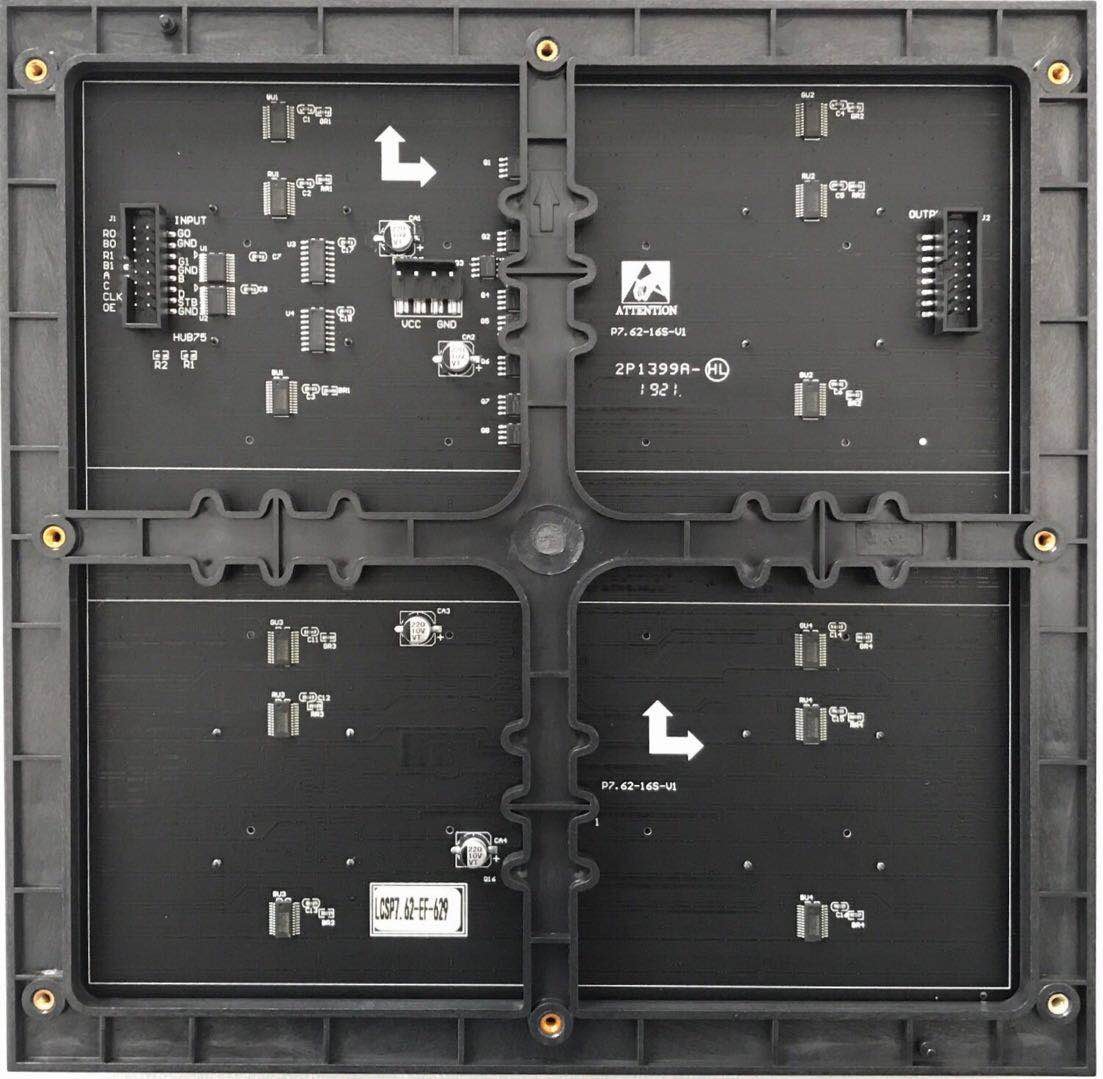

Module Specifications
1	Pixel Pitch	7.62mm
2	Pixel Configuration	3-in-1, SMD 3528
3	Module Resolution	32 X 32
4	Module Pixles	1024
5	Module Size	244mm X 244mm
6	Module power	5V2.4A 12W
Screen Parameters
1	Whole screen size	4.608mx3.072m = 14.15 sqm
2	LED Display piexl	1152 * 768
2	Cabinet quantity	18pcs*24pcs =432 pcs
3	Brightness	≥1000 mcd/㎡
4	Brightness(Max./Min.)	1.2:1
5	Driving Method	1/16 constant current
6	View Angle	Horizontal 140° Vertical 120°
7	Optimal Viewing Distance	3M
8	Brightness Control	Red,Green and Blue 256 Grade/Each
9	Refresh rate	>1920HZ
10	Frame Frequency	60Hz
11	Input Voltage	AC220V/50Hz or AC110V/60Hz
12	Defects Rate	≤0.00001
13	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
14	Screen weight	≤20kg/㎡
15	MTBF	>10,000 hours
16	Life span	≥100,000 hours
17	Module Display Brightness Uniformity	<2%
18	Earth Leakage Current	<3mA
19	Protective Grade	IP33
20	Temperature-operating	﹣25℃～45℃
21	Humidity-operating	10%～95%
22	Controlling system	LINSN
23	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.
