P3.91*7.81 Transparent LED Display High Refresh:1920Hz Cabinet Size:500mm*1000mm

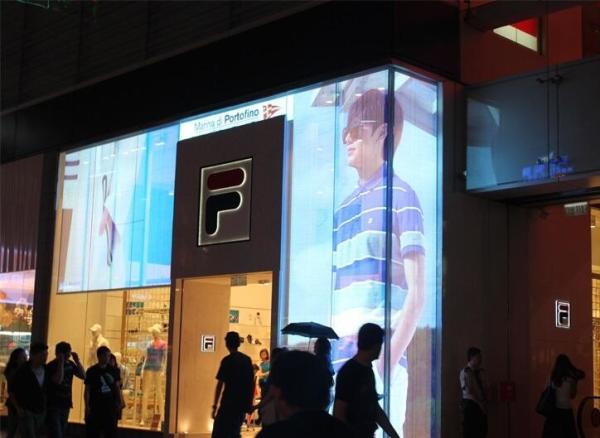

Applications

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH3.91*7.81mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	3.91mm*7.81mm
2	Pixel Configuration	3-in-1, SMD 1921
3	Module Size	500mm X 125mm
4	Module Resolution Size	128x16 led
5	Module Pixles	2048 led
6	Module power	5v9A 45W
Cabinet Specification
1	Cabinet Size(WXHXD)	500mmLx1000mmHx75mmD
2	Cabinet Resolution	128x128 pixels
3	Module Quanity	8 pcs
4	Cabinet Pixels	16384dots
5	Pixel Density	32768 dots/m2
6	Average Power Consumption	100W/cabinet
7	Max. Power Consumption	400W/cabinet
8	Material	Alum
9	Cabinet Weight	6 KG
10	Protective Grade	IP33
Screen Parameters
1	Whole screen size	36 sqm
2	LED Display piexl
2	Cabinet quantity	72pcs
3	Brightness	≥4000 mcd/㎡
4	Brightness(Max./Min.)	1.2:1
5	Driving Method	1/8 Scan
6	View Angle	Horizontal 140° Vertical 120°
7	Optimal Viewing Distance	6M
8	Brightness Control	Red,Green and Blue 256 Grade/Each
9	Refresh rate	>1920HZ
10	Frame Frequency	60Hz
11	Input Voltage	AC220V/50Hz or AC110V/60Hz
12	Defects Rate	≤0.00001
13	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
14	Screen weight	≤35kg/㎡
15	MTBF	>10,000 hours
16	Life span	≥100,000 hours
17	Module Display Brightness Uniformity	<2%
18	Earth Leakage Current	<3mA
19	Protective Grade	IP33
20	Temperature-operating	﹣25℃～45℃
21	Humidity-operating	10%～95%
22	Controlling system	LINSN
23	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.
