Outdoor LED Sign board Watter proof P10 10.56m*4.8m Energy onservation system

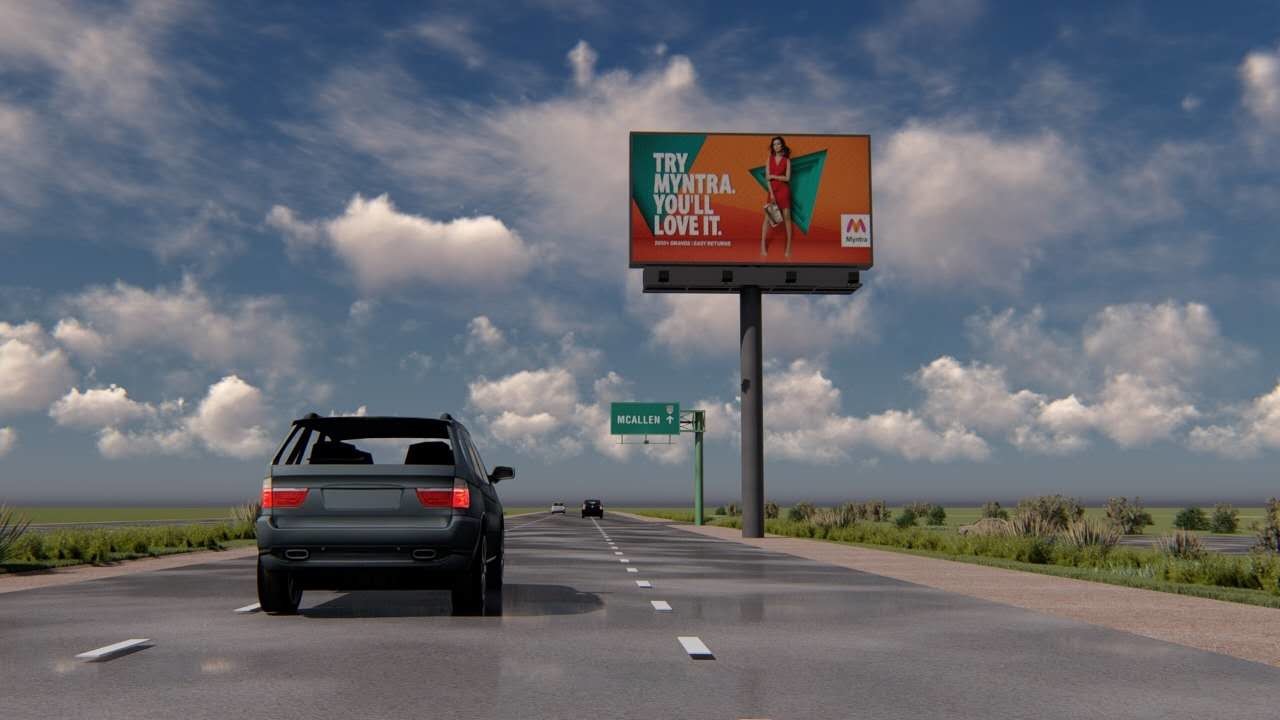

Applications

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH4mm LED SMD Outdoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	10mm
2	Pixel Configuration	3-in-1, SMD 3535
3	Module Resolution	32dots X 16dots
4	Module Pixles	512dots
5	Module Size	320mm X 160mm
6	Module power	5V7.2A 36W
Cabinet Specification
1	Cabinet Size(WXHXD)	960mmLx960mmHx100mmD
2	Cabinet Resolution	96x96 pixels
3	Module Quanity	18 pcs
4	Cabinet Pixels	9216 dots
5	Pixel Density	10000 dots/m2
6	Average Power Consumption	300W/cabinet
7	Max. Power Consumption	1000W/cabinet
8	Material	Alum+Magnet
9	Cabinet Weight	35KG
10	Protective Grade	IP65
Screen Parameters

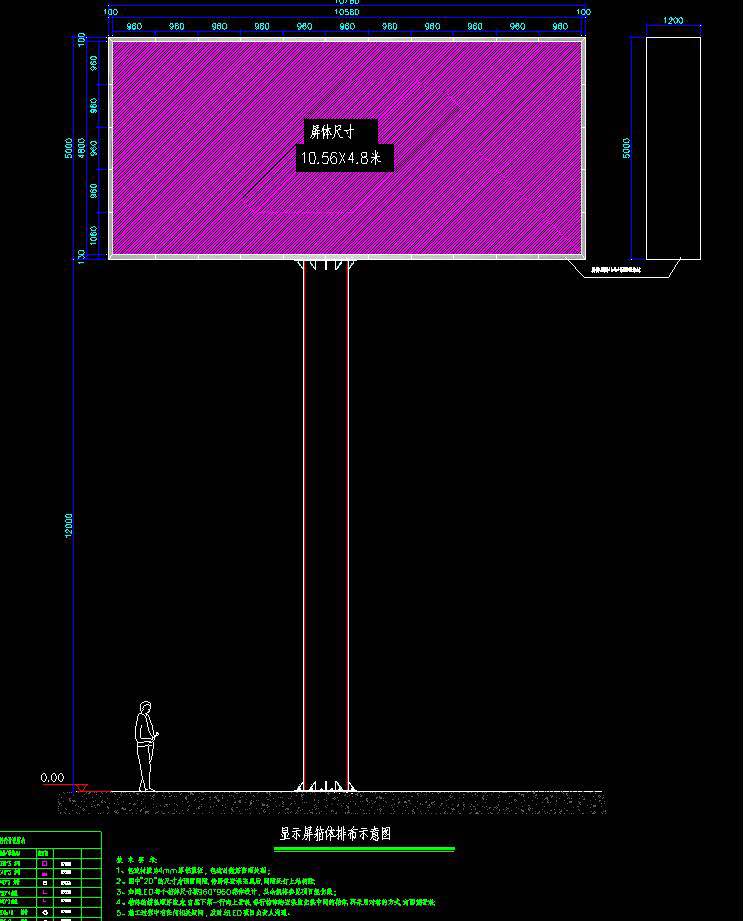

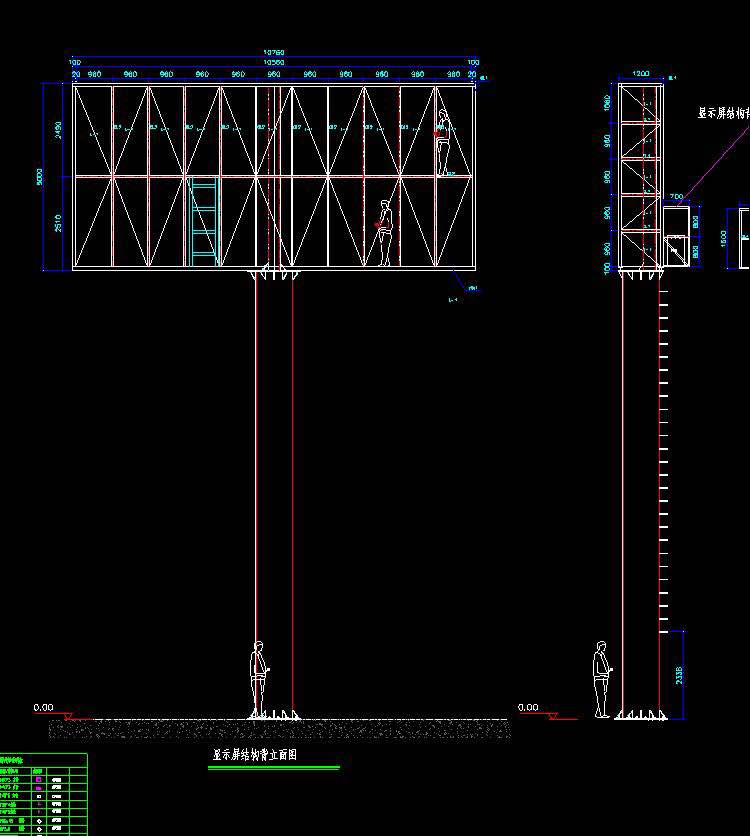

1	Whole screen size	10.56mx4.8m = 50.68sqm
2	LED Display piexl	1056 * 480
3	Cabinet quantity	55pcs
4	Brightness	≥6500 mcd/㎡
5	Brightness(Max./Min.)	1.2:1
6	Driving Method	1/2 Scan
7	View Angle	Horizontal 140° Vertical 120°
8	Optimal Viewing Distance	6M
9	Brightness Control	Red,Green and Blue 256 Grade/Each
10	Refresh rate	>1920HZ
11	Frame Frequency	60Hz
12	Input Voltage	AC220V/50Hz or AC110V/60Hz
13	Defects Rate	≤0.00001
14	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
15	Screen weight	≤35kg/㎡
16	MTBF	>10,000 hours
17	Life span	≥100,000 hours
18	Module Display Brightness Uniformity	<2%
19	Earth Leakage Current	<3mA
20	Protective Grade	IP65
21	Temperature-operating	﹣25℃～45℃
22	Humidity-operating	10%～95%
23	Controlling system	HD-Player Wifi
24	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.
