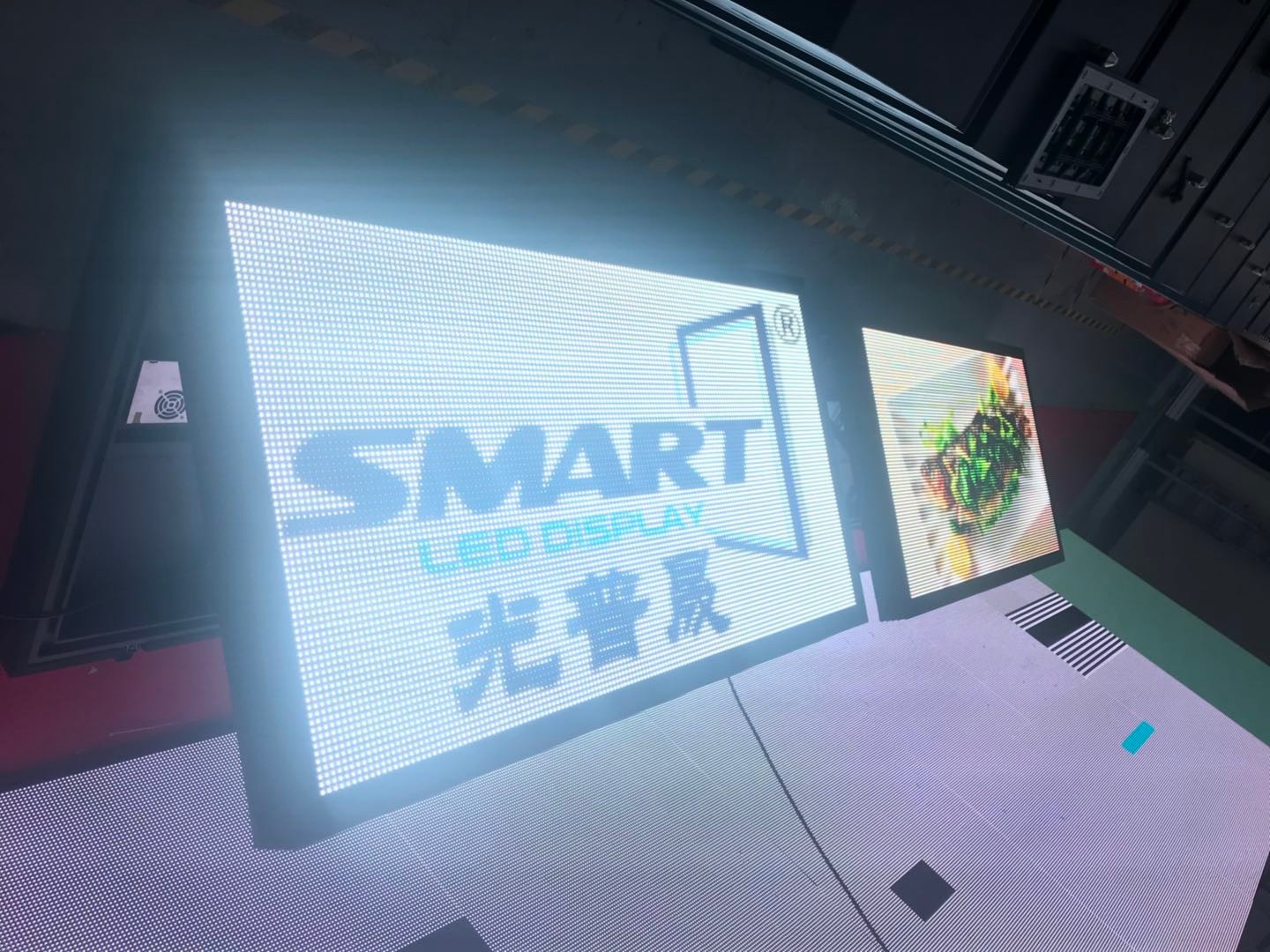

Outdoor LED Sign board Watter proof P10 1700mm*900mm Wifi Controller

Applications

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH4mm LED SMD Outdoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	4mm
2	Pixel Configuration	3-in-1, SMD 1921
3	Module Resolution	80dots X 40dots
4	Module Pixles	3200dots
5	Module Size	320mm X 160mm
6	Module power	5V8.5A 42.5W
Cabinet Specification
1	Cabinet Size(WXHXD)	1700mmLx900mmHx170mmD
2	Cabinet Resolution	160x80 pixels
3	Module Quanity	25 pcs
4	Cabinet Pixels	12800
5	Pixel Density	10000 dots/m2
6	Average Power Consumption	450W/cabinet
7	Max. Power Consumption	1500W/cabinet
8	Material	Iron
9	Cabinet Weight	35KG
10	Protective Grade	IP65
Screen Parameters
1	Whole screen size	4.8mx1.92m = 9.2sqm
2	LED Display piexl	1200 * 480
3	Cabinet quantity	5pcs*2pcs =10pcs
4	Brightness	≥6500 mcd/㎡
5	Brightness(Max./Min.)	1.2:1
6	Driving Method	1/10 Scan
7	View Angle	Horizontal 140° Vertical 120°
8	Optimal Viewing Distance	5M
9	Brightness Control	Red,Green and Blue 256 Grade/Each
10	Refresh rate	>1920HZ
11	Frame Frequency	60Hz
12	Input Voltage	AC220V/50Hz or AC110V/60Hz
13	Defects Rate	≤0.00001
14	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
15	Screen weight	≤35kg/㎡
16	MTBF	>10,000 hours
17	Life span	≥100,000 hours
18	Module Display Brightness Uniformity	<2%
19	Earth Leakage Current	<3mA
20	Protective Grade	IP65
21	Temperature-operating	﹣25℃～45℃
22	Humidity-operating	10%～95%

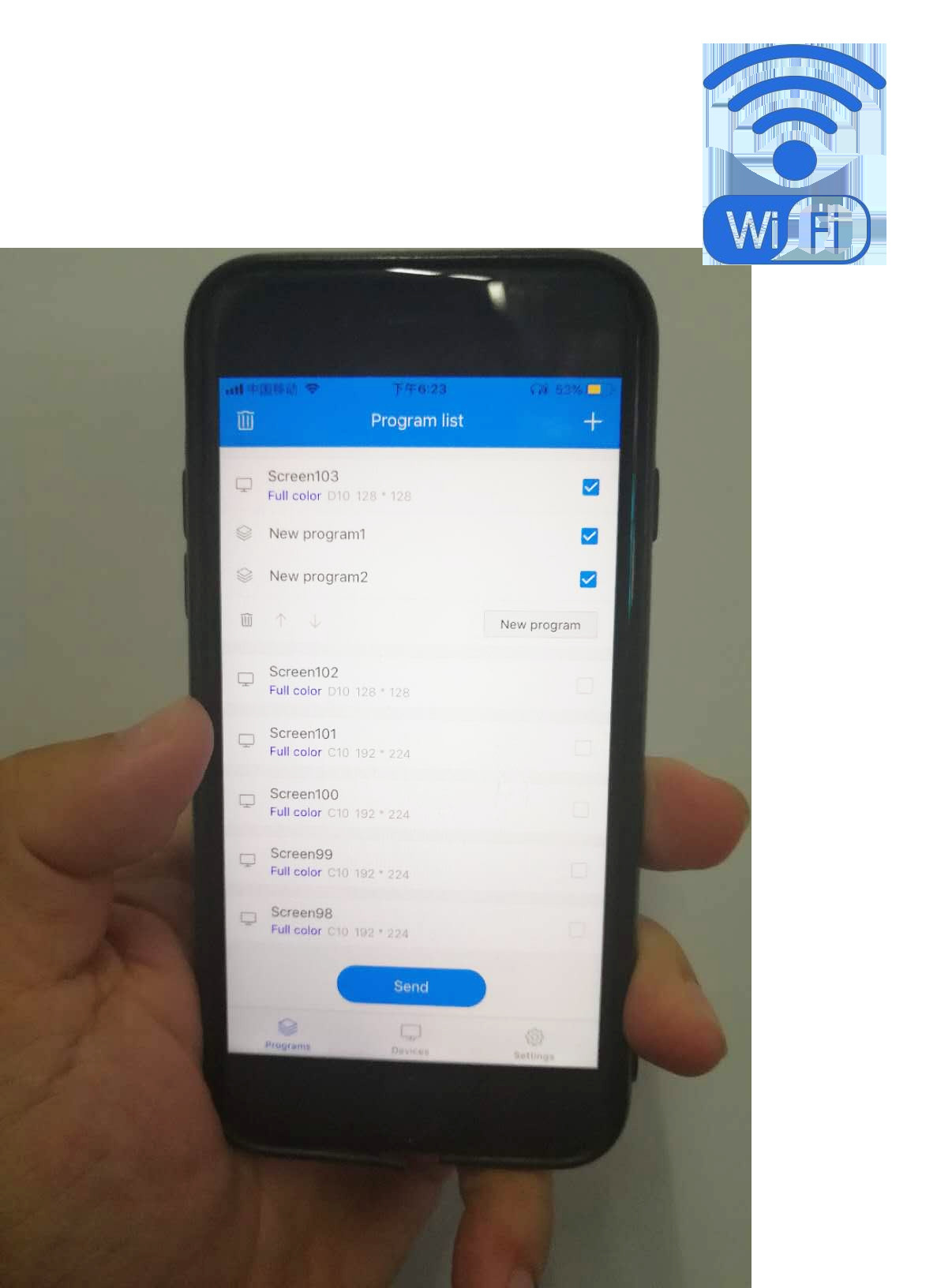

23	Controlling system	HD-Player Wifi
24	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.
