P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

Shenzhen LCS Display Technology Company., Ltd
Contact Now
    Buy cheap P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory from wholesalers

    Buy cheap P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory from wholesalers
    • Buy cheap P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory from wholesalers
    • Buy cheap P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory from wholesalers
    • Buy cheap P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory from wholesalers
    • Buy cheap P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory from wholesalers

    P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

    Ask Lasest Price
    Brand Name : SMART LED
    Model Number : P5 Indoor LED Display
    Certification : CE,ROSH,FCC
    Payment Terms : T/T
    Supply Ability : no requirement
    Delivery Time : 12 Days
    • Product Details
    • Company Profile

    P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

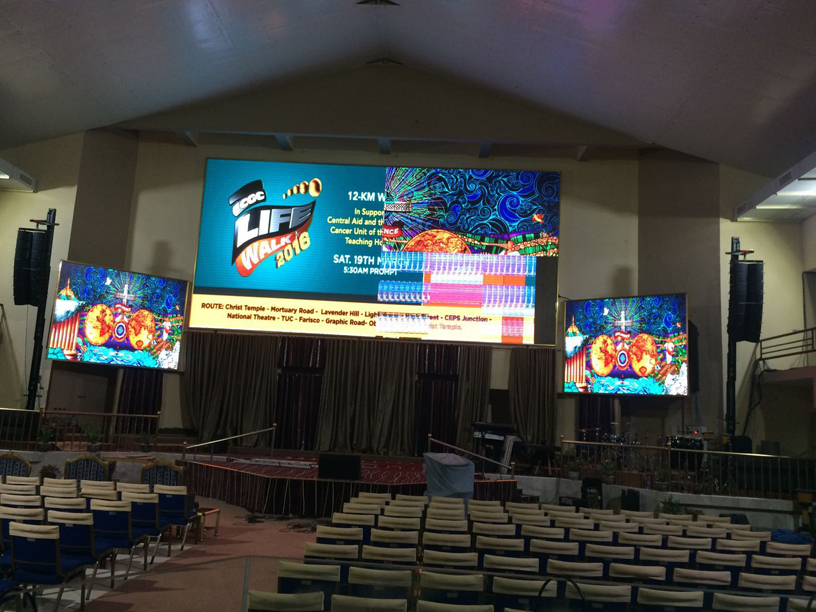

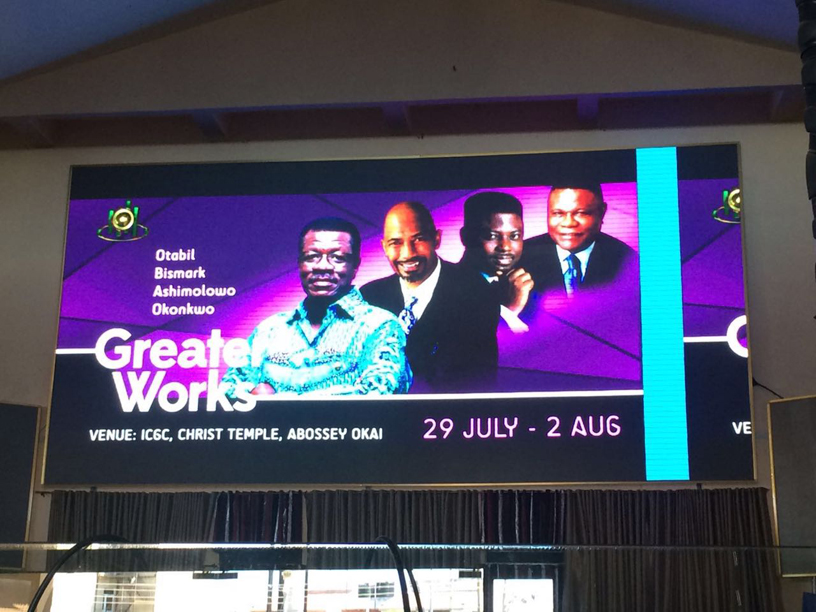

    P5 Indoor Display HD-LED Video screen 3528lamp 1920Hz Magnet Install (Ghana Project)


    Applications


    Product Features

    * Cabinet Install to the wall,Module magnet service

    * Used LED Processor can open 2 windows on the LED Display.

    * Power supply and Controller service from the front side.


    What we can do

    * Project advise,Make the easy project design,easy for install and service

    * Free on-line support

    * We will send the setting file send with the goods. And also we will keep the Project file.


    P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory


    PH5mm LED SMD Indoor Display Specification
    Technicial Parameters
    LED Parameters
    No.ItemLuminous IntensityViewing Angle(H/V)WavelengthTest Condition
    1Red LED (Epistar DICE)800-1000140º/120º620-630nm25℃,20mA
    2Green LED(Epistar DICE)1300~1500140º/120º520-535nm25℃,20mA
    3Blue LED (Epistar DICE)250~500140º/120º465-475nm25℃,20mA

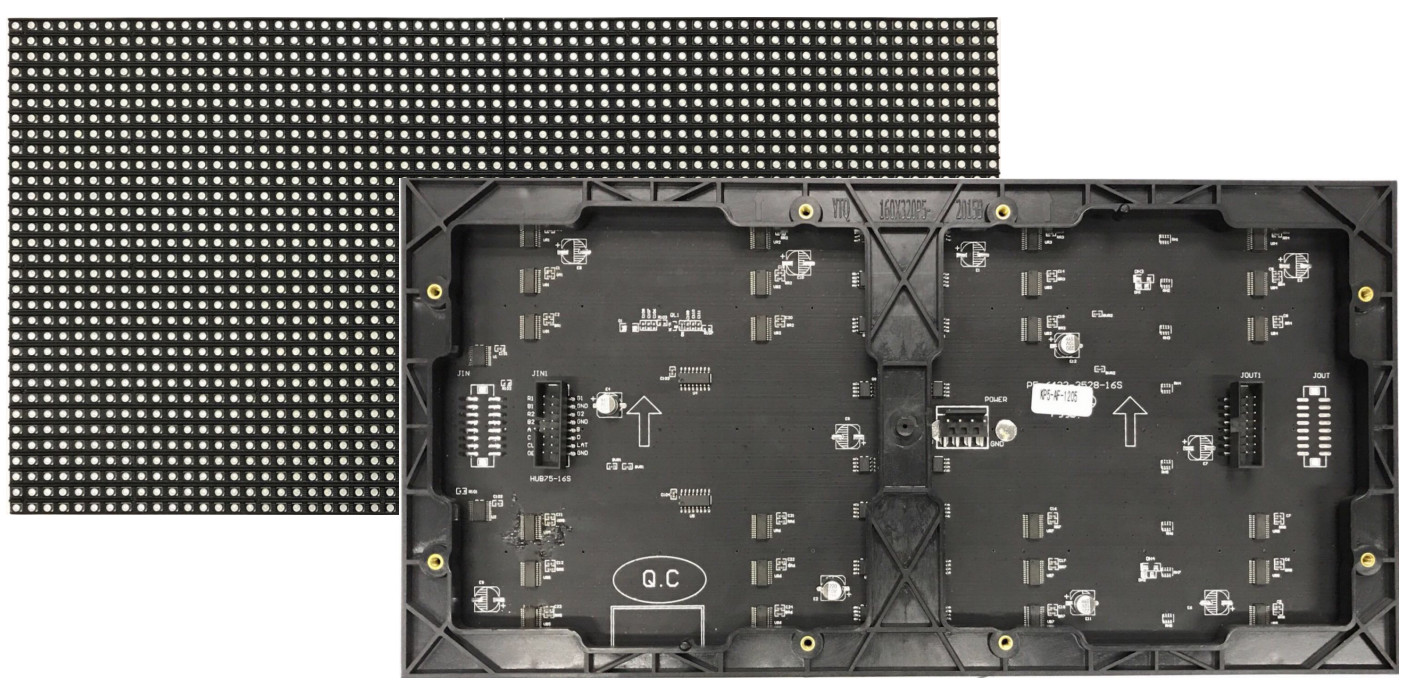

    Module Specifications
    1Pixel Pitch5mmP5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
    2Pixel Configuration3-in-1, SMD 3528
    3Module Size320mm X*160mm
    4Module Resolution64*32
    5Hub connectingHUB75
    6Module power5V3.6A 18W
    Screen Parameters
    1Whole screen size8m*3.68m = 29.44sqm



    P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

    2LED Display piexl1600 * 736
    2Module quantity25pcs*23pcs =575 pcs
    3Brightness≥1500 mcd/㎡
    4Brightness(Max./Min.)1.2:1
    5Driving Method1/16 constant current
    6View AngleHorizontal 140° Vertical 120°
    7Optimal Viewing Distance3M
    8Brightness ControlRed,Green and Blue 256 Grade/Each
    9Refresh rate>1920HZ
    10Frame Frequency60Hz
    11Input VoltageAC220V/50Hz or AC110V/60Hz
    12Defects Rate≤0.00001
    13Power ConsumptionMax.: 800W/㎡
    Average: 300W/㎡
    14Screen weight≤20kg/㎡
    15MTBF>10,000 hours
    16Life span≥100,000 hours
    17Module Display Brightness Uniformity<2%
    18Earth Leakage Current<3mA
    19Protective GradeIP33
    20Temperature-operating﹣25℃~45℃
    21Humidity-operating10%~95%
    22Controlling systemLINSN
    23Operating SystemWIN7/WIN8/WIN10
    Remarks:
    1. Software and User’s manual in English included.
    2. 30% Down Payment before Production, Balance before shippment
    3. Lead time:15 working Days against down Payment
    4. Two Years Maintain Replacement free.

    3528Lamp and 2020Lamp


    Package


    Web:

    WWW.LEDLCS.COM

    www.ledvideo-screen.com
