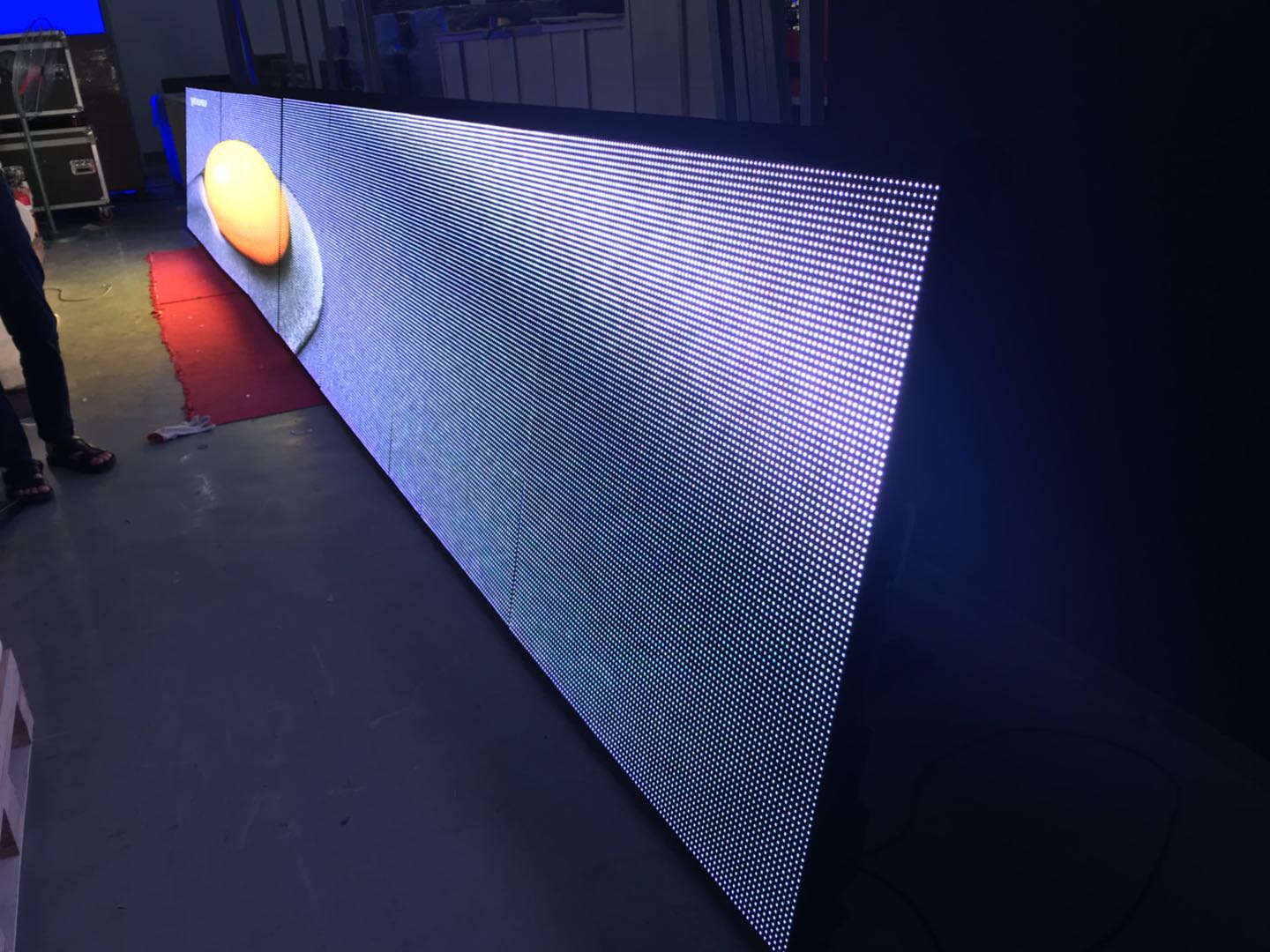

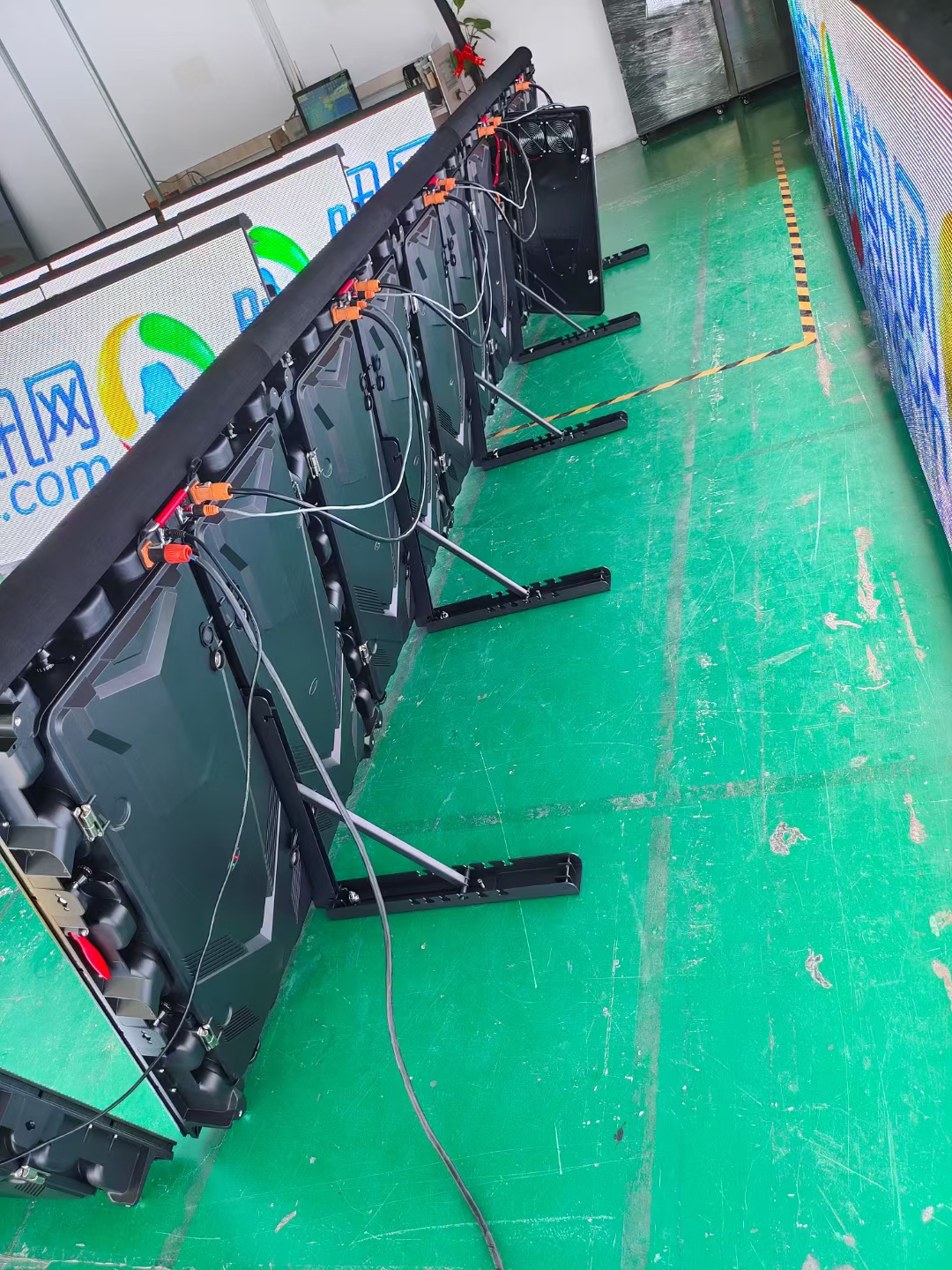

LED Perimeter Display P10 SMD Outdoor LED Screen Cabinet size:960mm*960mm

Applications

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH8 LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA

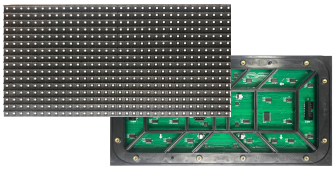

Module Specifications
1	Pixel Pitch	P10
2	Pixel Configuration	3-in-1, SMD 3535
3	Module Size	320mm X 160mm
4	Module Resolution Size	32x16 led
5	Module Pixles	512 led
6	Module power	5v7.2A 36W
Cabinet Specification
1	Cabinet Size(WxHxD)	960mm*960mmHx135mmD
2	Cabinet Resolution	96*96 pixels
3	Module Quanity	18 pcs
4	Cabinet Pixels	9216 dots
5	Pixel Density	10000 dots/m2
6	Average Power Consumption	300W/cabinet
7	Max. Power Consumption	1000W/cabinet
8	Material	Aluminium
9	Cabinet Weight	30 KG
10	Protective Grade	IP65
Screen Parameters
1	Whole screen size	7.68m*0.96m(h)
2	LED Display piexl	768*96
2	Cabinet quantity	8pcs
3	Brightness	≥6500 mcd/㎡
4	Brightness(Max./Min.)	1.2:1
5	Driving Method	1/2 Scan
6	View Angle	Horizontal 140° Vertical 120°
7	Optimal Viewing Distance	10M
8	Brightness Control	Red,Green and Blue 256 Grade/Each
9	Refresh rate	>1920HZ
10	Frame Frequency	60Hz
11	Input Voltage	AC220V/50Hz or AC110V/60Hz
12	Defects Rate	≤0.00001
13	Power Consumption	Max.: 1100W/㎡ Average: 300W/㎡
14	Screen weight	≤35kg/㎡
15	MTBF	>10,000 hours
16	Life span	≥100,000 hours
17	Module Display Brightness Uniformity	<2%
18	Earth Leakage Current	<3mA
19	Protective Grade	IP65
20	Temperature-operating	﹣25℃～45℃
21	Humidity-operating	10%～95%
22	Controlling system	LINSN
23	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.

Out Producing department

Packaging and shipping

Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
