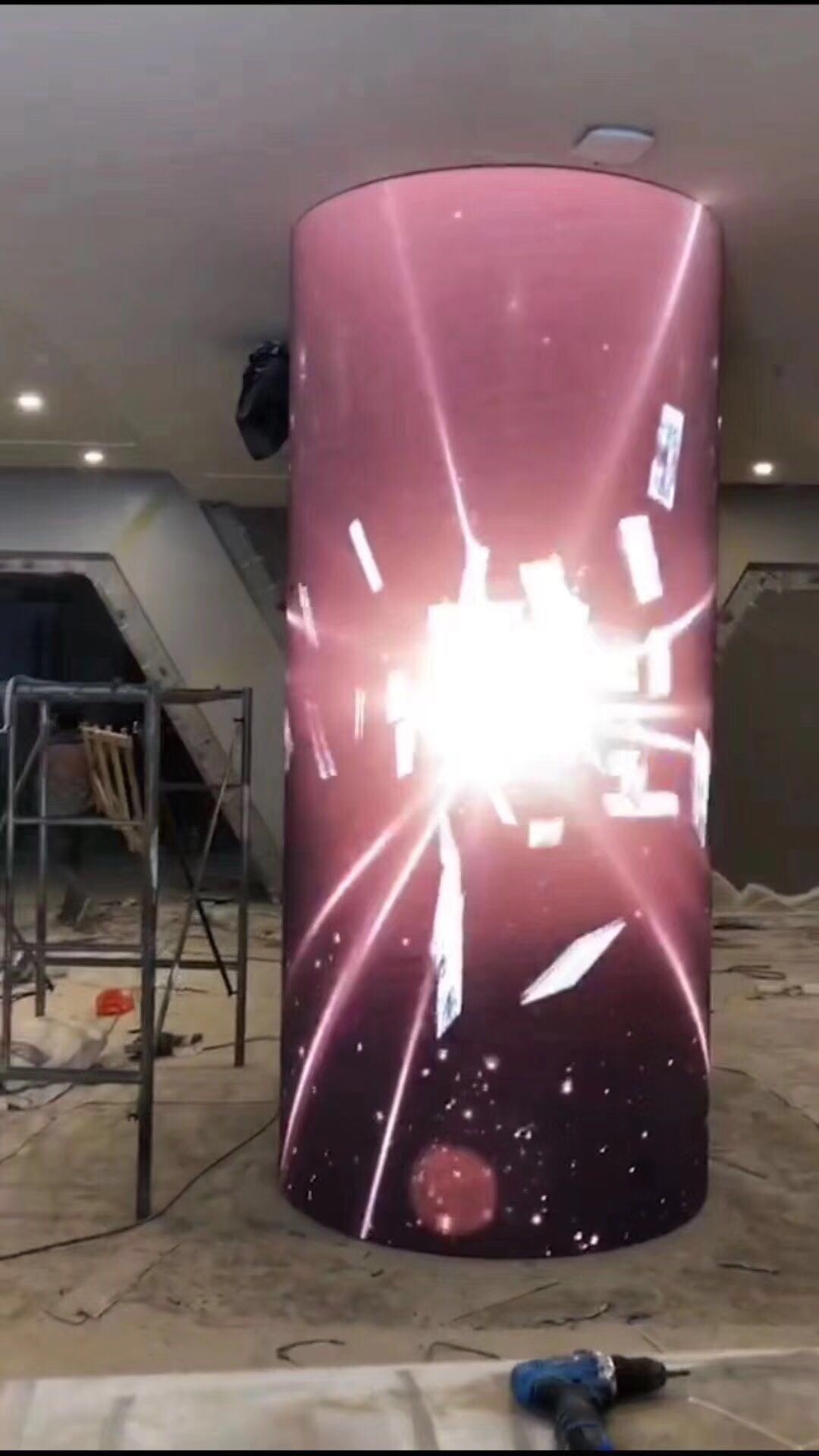

P4 Indoor HD-LED Video Pillar Diameter: 1m High: 3.072m Flexible P4

Applications


Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH4mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/70º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/70º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/70º		465-475nm	25℃,20mA

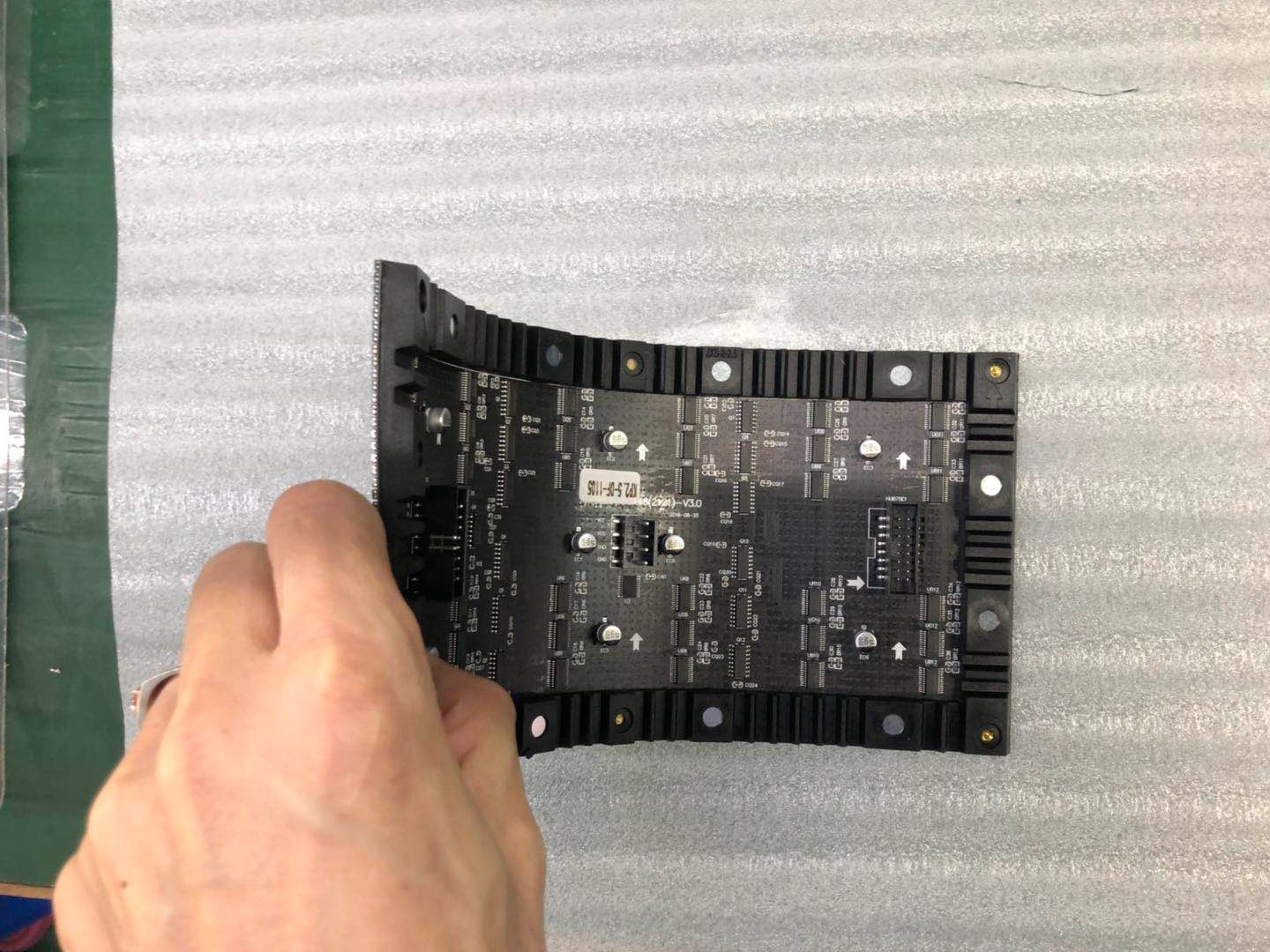

Module Specifications
1	Pixel Pitch	4mm
2	Pixel Configuration	3-in-1, SMD 2020
3	Module Resolution	64 X 32
4	Module Pixles	2048
5	Module Size	256mm X 128mm
6	Module power	5V3.6A 18W
Cabinet Specification
1	Cabinet Size(WXHXD)	Diameter 1m high:1.024m
2	Cabinet Resolution	384*256
3	Module Quanity	48 pcs
4	Cabinet Pixels	98304 dots
5	Pixel Density	62500 dots/m2
6	Average Power Consumption	360W/cabinet
7	Max. Power Consumption	1200W/cabinet
8	Material	Iron
9	Cabinet Weight	53 KG/Half size
10	Protective Grade	IP33
Screen Parameters
1	Whole screen size	Diameter 1m high:3.072m
2	LED Display piexl	768 * 768
2	Cabinet quantity	6 pcs
3	Brightness	≥1000 mcd/㎡
4	Brightness(Max./Min.)	1.2:1
5	Driving Method	1/16 Scan
6	View Angle	Horizontal 140° Vertical 120°
7	Optimal Viewing Distance	5M
8	Brightness Control	Red,Green and Blue 256 Grade/Each
9	Refresh rate	>19200HZ
10	Frame Frequency	60Hz
11	Input Voltage	AC220V/50Hz or AC110V/60Hz
12	Defects Rate	≤0.00001
13	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
14	Screen weight	≤28.6kg/㎡
15	MTBF	>10,000 hours
16	Life span	≥100,000 hours
17	Module Display Brightness Uniformity	<2%
18	Earth Leakage Current	<3mA
19	Protective Grade	IP33
20	Temperature-operating	﹣25℃～45℃
21	Humidity-operating	10%～95%
22	Controlling system	Nova
23	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.

Out Producing department



Project Install






Packaging and shipping
Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
