P4 Indoor LED Display Ball Diameter:0.8m,1m,1.2m,1.5m,2m Video,Text,Photo,

Applications


Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

We have Stock Size:

Indoor P3----- 0.8m,1m,1.2m,1.5m,2m

Indoor P4----- 1m,1.2m,1.5m,2m

Outdoor P8----- 3m

We welcome all inquiries,requirements and customized orders.

PH4 LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º		465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	P4
2	Pixel Configuration	3-in-1, SMD 2020
3	Module Size
4	Module Resolution Size
5	Module Pixles
6	Module power
Cabinet Specification
1	Cabinet Size(WXHXD)	Diameter:1.5M
2	Cabinet Resolution	1116*580
3	Module Quanity	8 pcs
4	Cabinet Pixels
5	Pixel Density
6	Average Power Consumption	1680W/cabinet
7	Max. Power Consumption	5600W/cabinet
8	Material	Iron
9	Cabinet Weight	300KG
10	Protective Grade	IP33
Packing size:1600mmx1600mmx1900mm Weight:300kg
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.

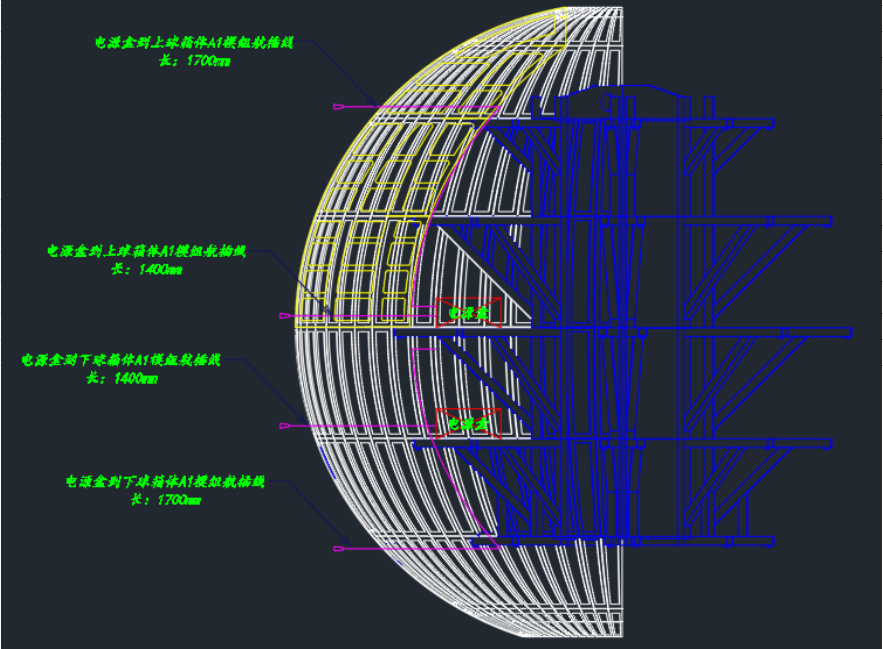

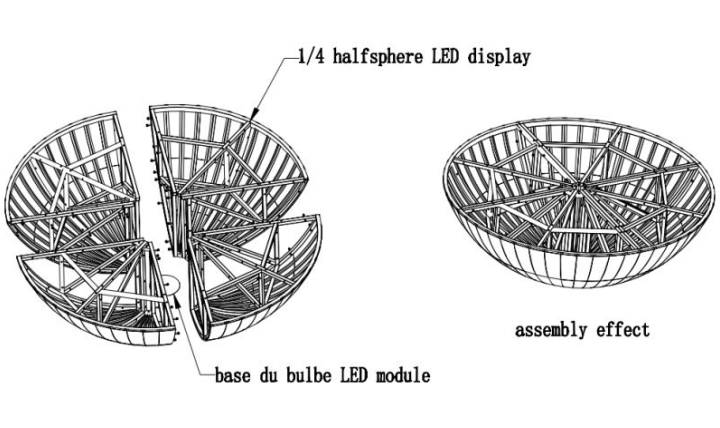

LED Ball Cad







LED Ball Parts


LED Ball Test

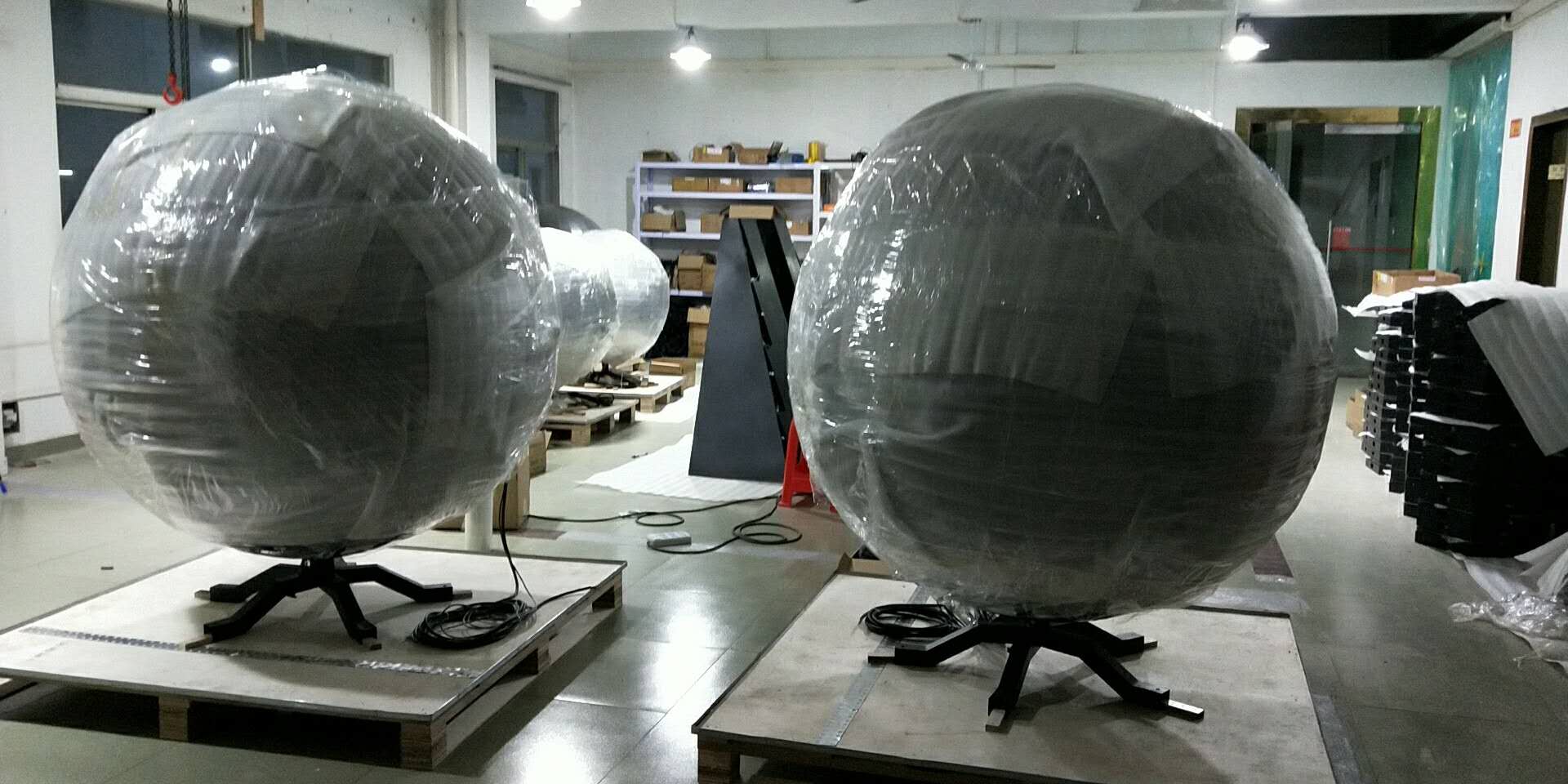

LED Ball Package






Packaging and shipping

Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.

Shenzhen LCS Display Technology Company., Ltd. was established in 2010. It is a LED display manufacturer that integrates design, development, production of patches and assembly. In terms of raw materials, we have established a stable cooperative relationship with supporting suppliers. In terms of convenient production, there are 7 high-speed SMT lines and automatic reflow soldering production lines, which can ensure the delivery of orders. For welding quality, we use solder paste welding quality inspection machine to check the stability of welding before each unit board is put on the aging rack. Our company always insist that integrity is the basis, leading production technology is supported, and professional and dedicated services are keys to cooperate with our customers and achieve a win-win situation.

Application areas: dedicated to intelligent transportation, intelligent security monitoring, radio and television broadcasting, video conferencing, intelligent advertising media, real estate and commercial display, science and education stadiums, cultural performance stage display, smart scene creative display, and other smart terminal smart display engineering applications.

Our company is one of the national high-tech enterprises in 2019,

Our company's products have passed: CE certification, 3C certification, green environmental protection certification, strictly improve the product quality management under the ISO9001: quality certification system, and strictly follow the quality inspection procedures and supply of IQC, IPQC, CFQC, QA in the process Chain management.

Our company's products are independently developed, produced, and sold in more than 10 countries domestic and overseas. From 2017 to 2018, we participated in a total of 17 overseas international exhibitions in 8 countries. we have brand honors, qualification certificates, and 109 patents.
