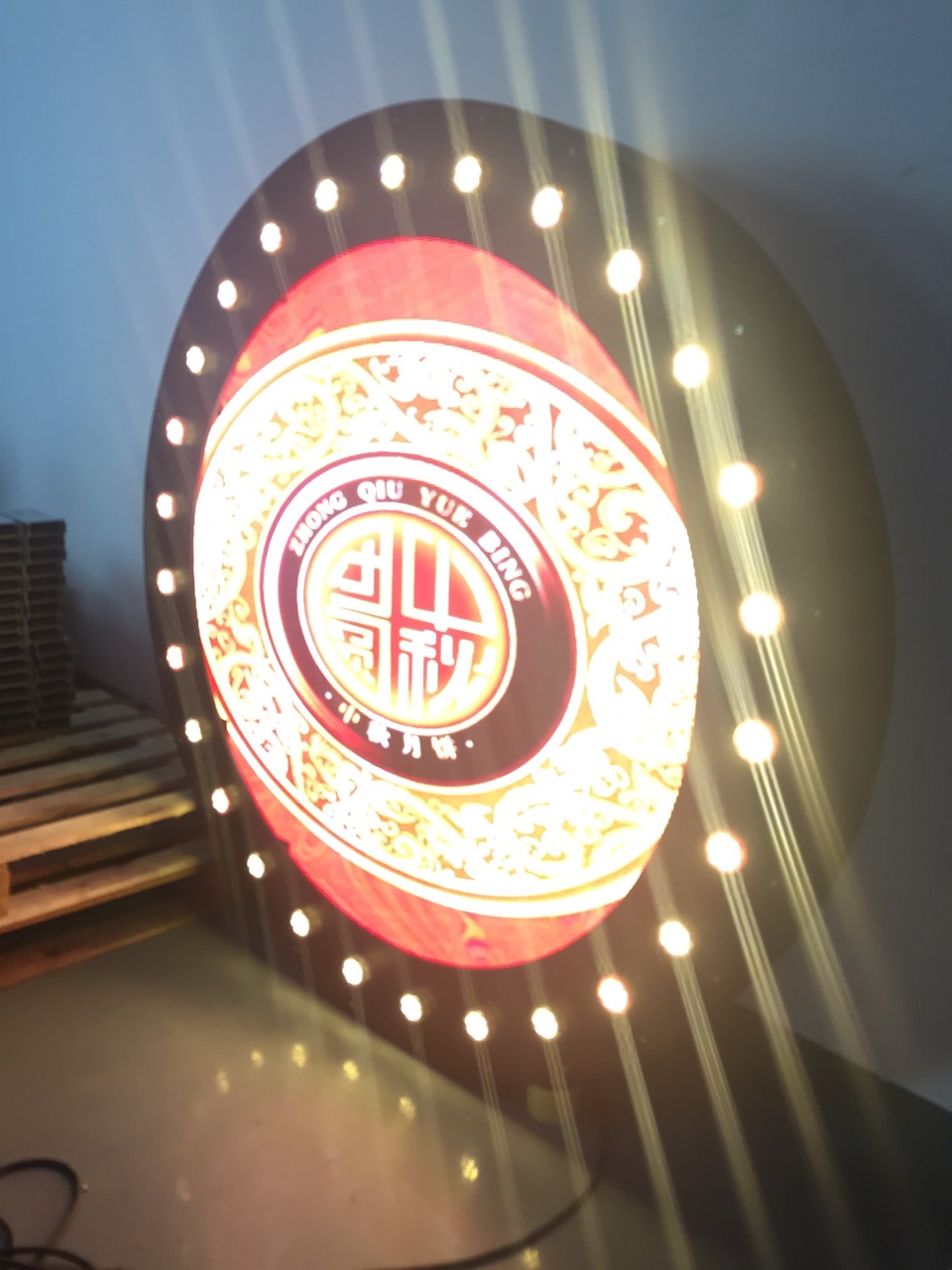

IP33 Waterproof LED Sphere Display 1/16 Scan 0.8m 1m 1.2m Ball Diameter

Applications


Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH2mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)		Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/70º		620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/70º		520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/70º		465-475nm	25℃,20mA
Module Specifications

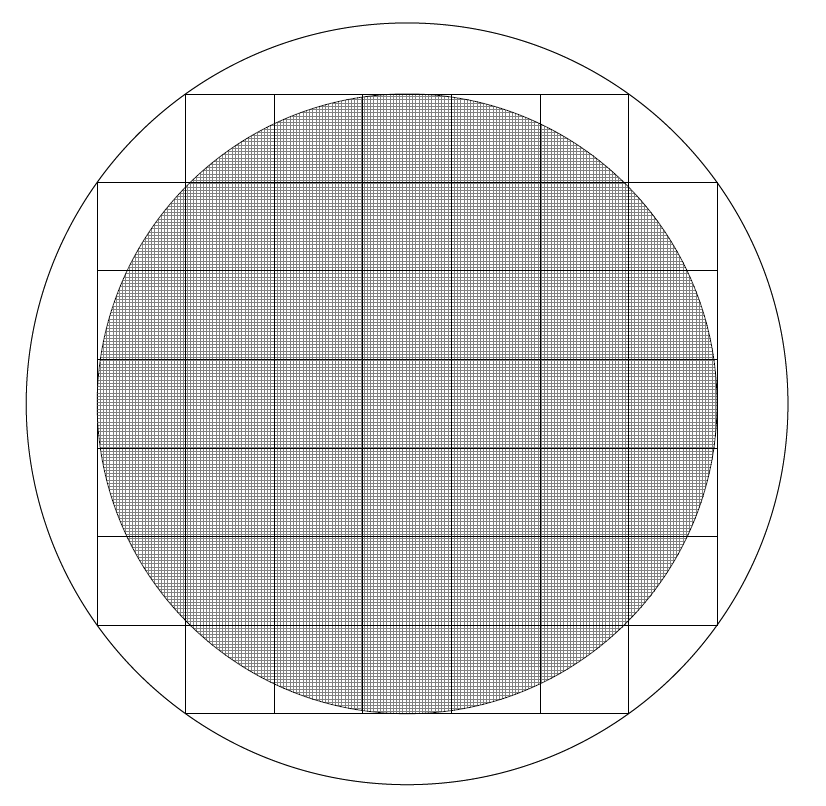

1	Pixel Pitch	3mm
2	Pixel Configuration	3-in-1, SMD 2020
3	Module Resolution	64dots X 64dots
4	Module Pixles	4096 dots
5	Module Size	192mm X 192mm
6	Module power	5V3.6A 18W
Screen Parameters
1	Whole screen size	1.344m*1.344m
2	LED Display piexl	448 * 448
2	Cabinet quantity	6 pcs
3	Brightness	≥1000 mcd/㎡
4	Brightness(Max./Min.)	1.2:1
5	Driving Method	1/16 Scan
6	View Angle	Horizontal 140° Vertical 120°
7	Optimal Viewing Distance	5M
8	Brightness Control	Red,Green and Blue 256 Grade/Each
9	Refresh rate	>19200HZ
10	Frame Frequency	60Hz
11	Input Voltage	AC220V/50Hz or AC110V/60Hz
12	Defects Rate	≤0.00001
13	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
14	Screen weight	≤28.6kg/㎡
15	MTBF	>10,000 hours
16	Life span	≥100,000 hours
17	Module Display Brightness Uniformity	<2%
18	Earth Leakage Current	<3mA
19	Protective Grade	IP33
20	Temperature-operating	﹣25℃～45℃
21	Humidity-operating	10%～95%
22	Controlling system	Nova
23	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.

Out Producing department






Packaging and shipping
Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.

Shenzhen LCS Display Technology Company., Ltd. was established in 2010. It is a LED display manufacturer that integrates design, development, production of patches and assembly. In terms of raw materials, we have established a stable cooperative relationship with supporting suppliers. In terms of convenient production, there are 7 high-speed SMT lines and automatic reflow soldering production lines, which can ensure the delivery of orders. For welding quality, we use solder paste welding quality inspection machine to check the stability of welding before each unit board is put on the aging rack. Our company always insist that integrity is the basis, leading production technology is supported, and professional and dedicated services are keys to cooperate with our customers and achieve a win-win situation.

Application areas: dedicated to intelligent transportation, intelligent security monitoring, radio and television broadcasting, video conferencing, intelligent advertising media, real estate and commercial display, science and education stadiums, cultural performance stage display, smart scene creative display, and other smart terminal smart display engineering applications.

Our company is one of the national high-tech enterprises in 2019,

Our company's products have passed: CE certification, 3C certification, green environmental protection certification, strictly improve the product quality management under the ISO9001: quality certification system, and strictly follow the quality inspection procedures and supply of IQC, IPQC, CFQC, QA in the process Chain management.

Our company's products are independently developed, produced, and sold in more than 10 countries domestic and overseas. From 2017 to 2018, we participated in a total of 17 overseas international exhibitions in 8 countries. we have brand honors, qualification certificates, and 109 patents.
