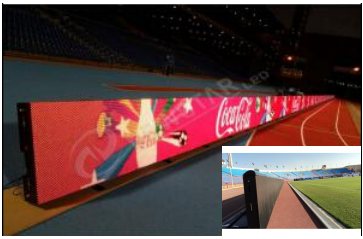

P5 Perimeter 960X960mm Soft Mask Indoor Die-Case LED Display

LED Perimeter Display P5 SMD Outdoor LED Screen Cabinet size:960mm*960mm

Applications

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

PH5mm LED SMD Indoor Display Specification and Quotation
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity		Viewing Angle(H/V)	Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000		140º/120º	620-630nm	25℃,20mA
2	Green LED(SILAN DICE)	1300~1500		140º/120º	520-535nm	25℃,20mA
3	Blue LED ( SILAN DICE)	250~500		140º/120º	465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	10mm
2	Pixel Configuration	3-in-1 SMD module
3	Module Resolution	32dots X 16dots
4	Module Pixles	512 dots
5	Module Size	320mm X 160mm
6	Driving Method	1/2 Scan
Cabinet Specification
1	Cabinet Size(WXHXD)	960mmLx960mmHx135mmD
2	Cabinet Resolution	96x 96 pixels
3	Module Quanity	18 pcs
4	Cabinet Pixels	9216 dots
5	Pixel Density	10000 dots/m2
6	Average Power Consumption	400W/m2
7	Max. Power Consumption	1000W/m2
8	Material	Aluminium
9	Cabinet Weight	35 KG
Screen Parameters
1	Whole screen size	249.6m
2	Cabinet quantity	260pcs
3	Power Consumption	234kw
4	Brightness	≥ 6500mcd/㎡
5	Brightness(Max./Min.)	1.2:1
6	Driving Method	1/2 Scan
7	View Angle	Horizontal 120° Vertical 120°
8	Optimal Viewing Distance	10M
9	Brightness Control	Red,Green and Blue 256 Grade/Each
10	Fresh requency	>1920HZ
11	Frame Frequency	60Hz
12	Input Voltage	AC220V/50Hz or AC110V/60Hz
13	Defects Rate	≤0.00001
14	Power Consumption	Max.: 1040W/㎡ Average: 415W/㎡
15	Screen weight	≤45kg/㎡
16	MTBF	>10,000 hours
17	Life span	≥100,000 hours
18	Module Display Brightness Uniformity	<2%
19	Earth Leakage Current	<3mA
20	Protective Grade	IP65
21	Temperature-operating	﹣25℃～45℃
22	Humidity-operating	10%～95%
23	Controlling system	HD Player
24	Operating System	Win xp/Win 7/Win 8/Win10

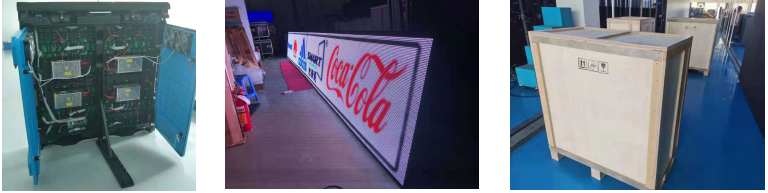

Outdoor cabinet size
Outdoor led display install cabinet
Control system
HD-Player software HD-A4
Support Lan cable send video or Hdmi to online show computer				Support Wifi send video to display
QUOTATION(Alum die case cabinet ) Tech: 10mm,1/2Scan Panel size:960*960mm weight 35kg/pcs,National star Brightness:65000mcd , Refresh:1920hz Actual Screen Size: 34.56m(W) x 0.96m(H) = 33.17 m2 Actual Screen Pixel: 3456 led x 96 led = 331776 led panels(960*960mm): 36Pcs(W) x 1 Pcs(H) = 36 Pcs

Packaging and shipping

Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
